Queen Mary Passive House

Project:Custom Home
Size:8,000 sq ft
Location:Fort Langley
Design:Architrix Design Studio
Interiors:Arbutus Interiore
Landscape:Jovak Landscaping & Design

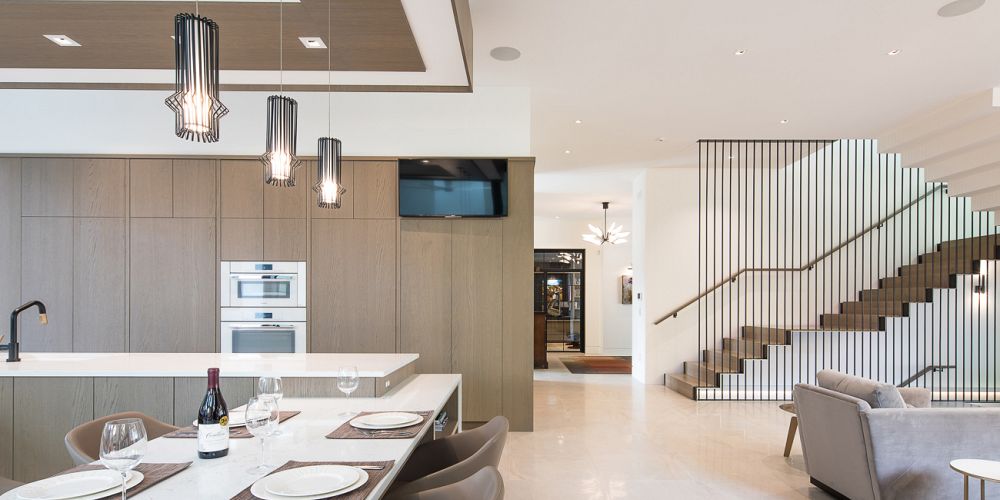

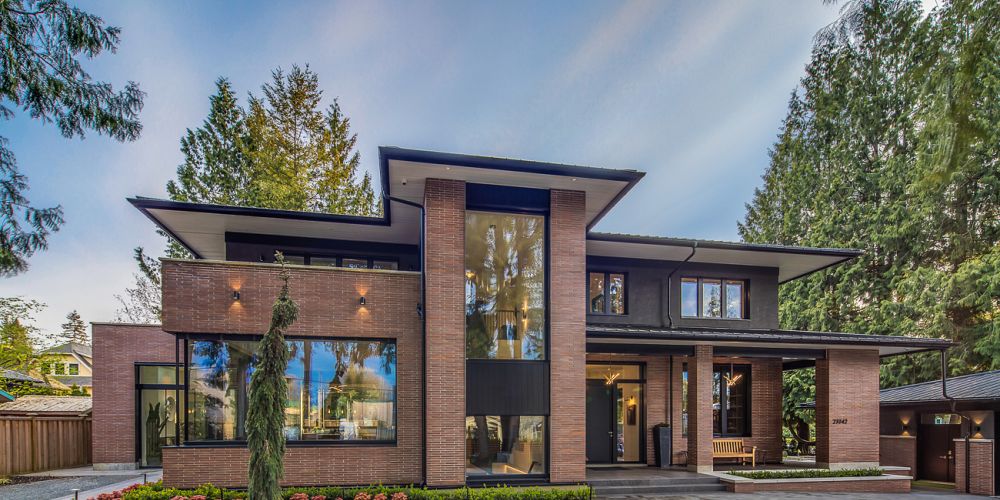

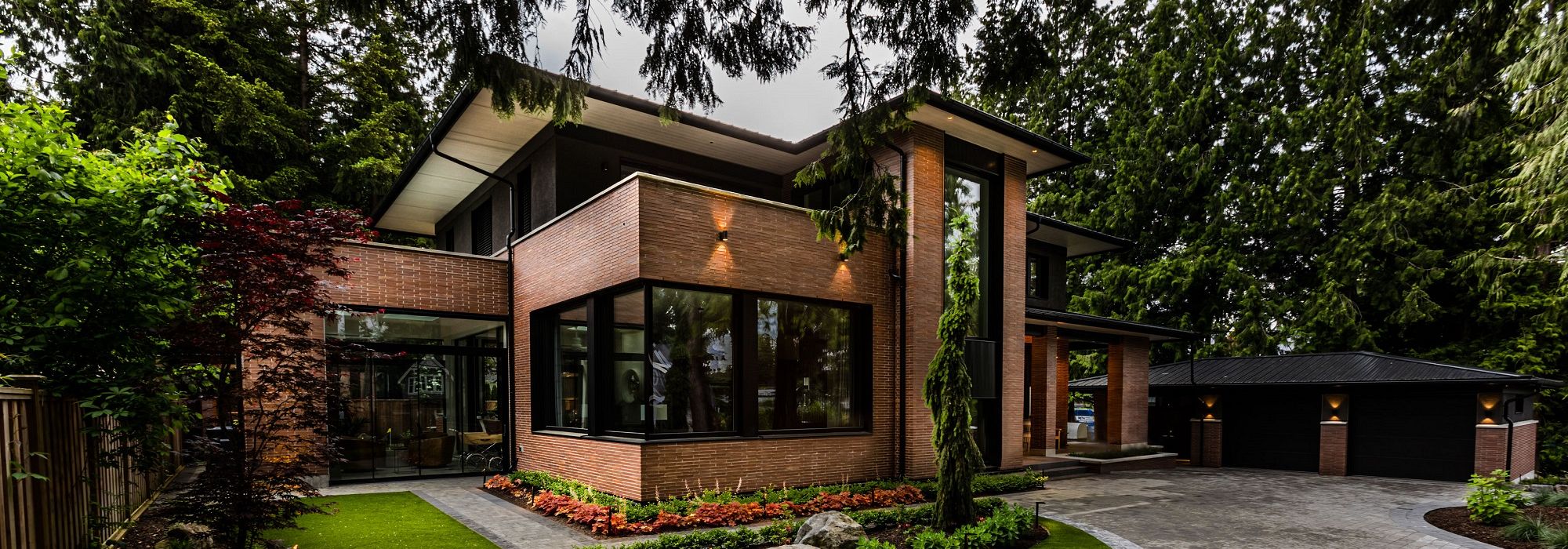

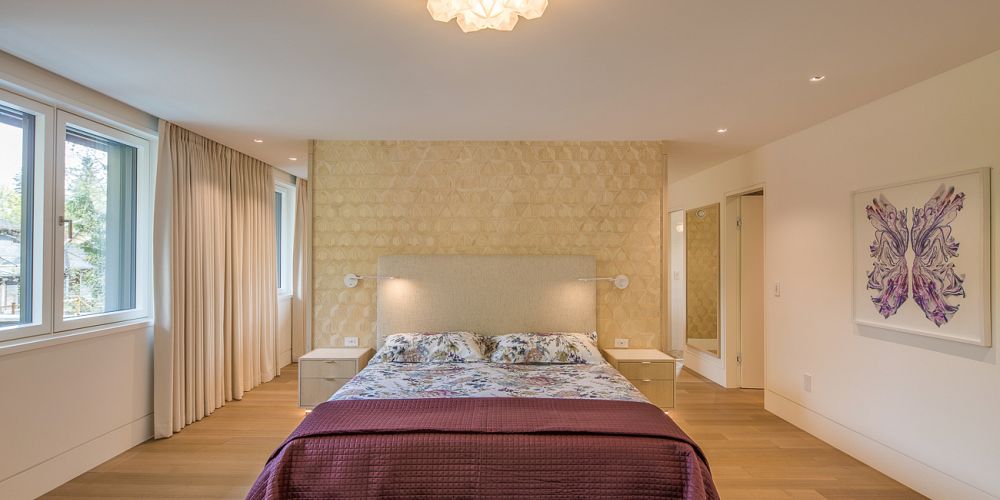

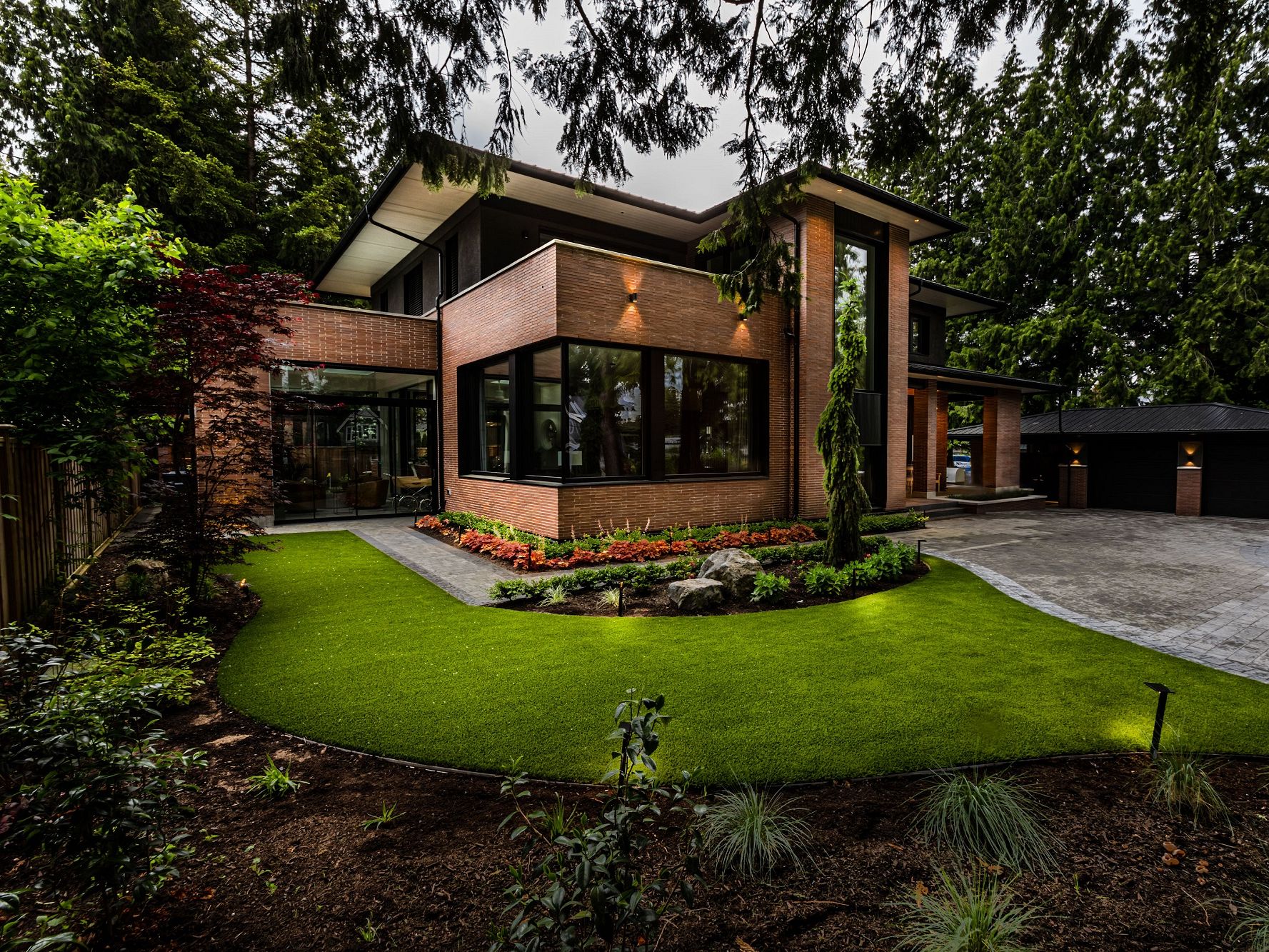

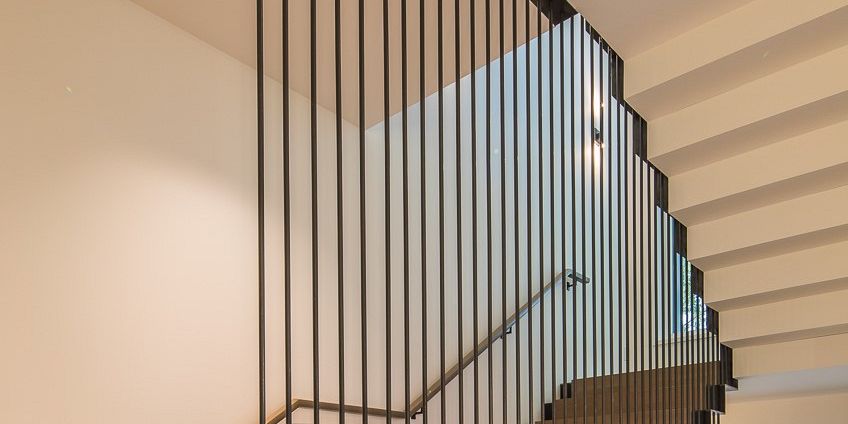

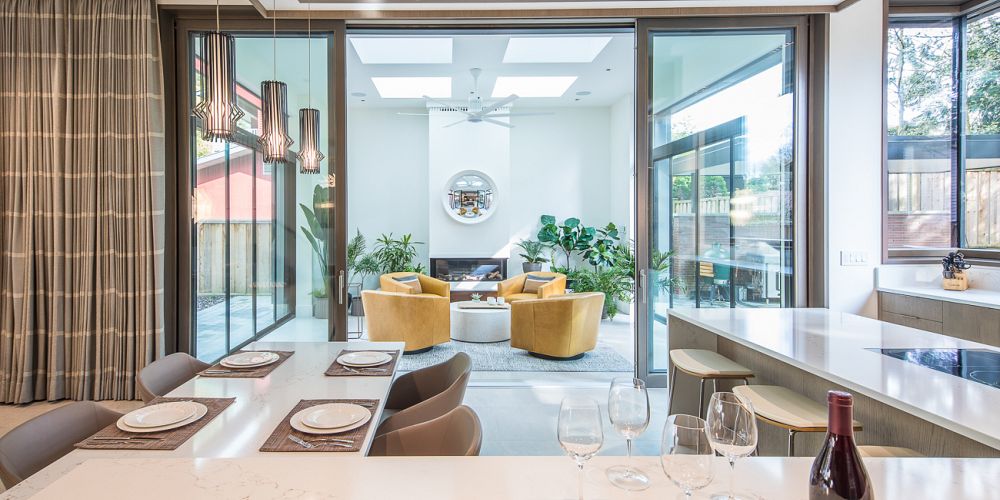

A Frank Lloyd Wright inspired design for this certified Passive House. We built this house for a wonderful couple who are Passive House enthusiasts. This home is another great example of how a Passive House can be built with no compromises. This home boasts an abundance of natural light with oversized windows, a beautiful sunroom, custom stairs made from steel plate suspended off the exterior wall and an elevator. This is the first Passive House we have built with in-floor radiant heat which was a huge success and we installed solar panels to make this home certify as a Passive House Plus! Photos by Peter Powles and Alpine Media Productions.

Sustainable Highlights:


  •      Air-tightness rating of 0.23 air changes per hour (ACH)
  •      Insulated concrete foundation, Nurdura XR35, first install West of Ontario
  •      Pre-fabricated, pre-insulated wall and roof structure by BC Passive House
  •      15” thick exterior walls with an R-value of R-47
  •      Airtight and vapour controlling SIGA building envelope system
  •      Optiwin triple pane high performance windows from Austria
  •      Magnetic induction electric cooktop
  •      Electric heat pump condensing clothes dryer
  •      AltSource T2 electric boiler for domestic hot water & radiant floor heating
  •      Zehnder ComfoAir Q600 heat recovery ventilator
  •      LED lighting

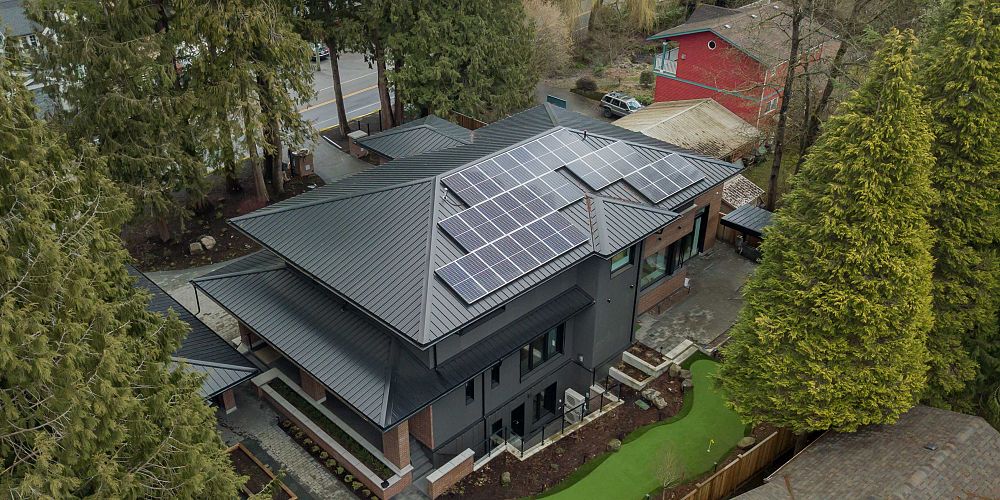

  •      Solar panels tied to a net metering system for energy generation credits
